Features
Frame: Powder Coated Steel.
Cover: Highly Durable PVC.
Insulation: Reflective Insulative System faced with a Knitted Polyester Fabric.
Door: Lockable, Frosted Tempered Glass.

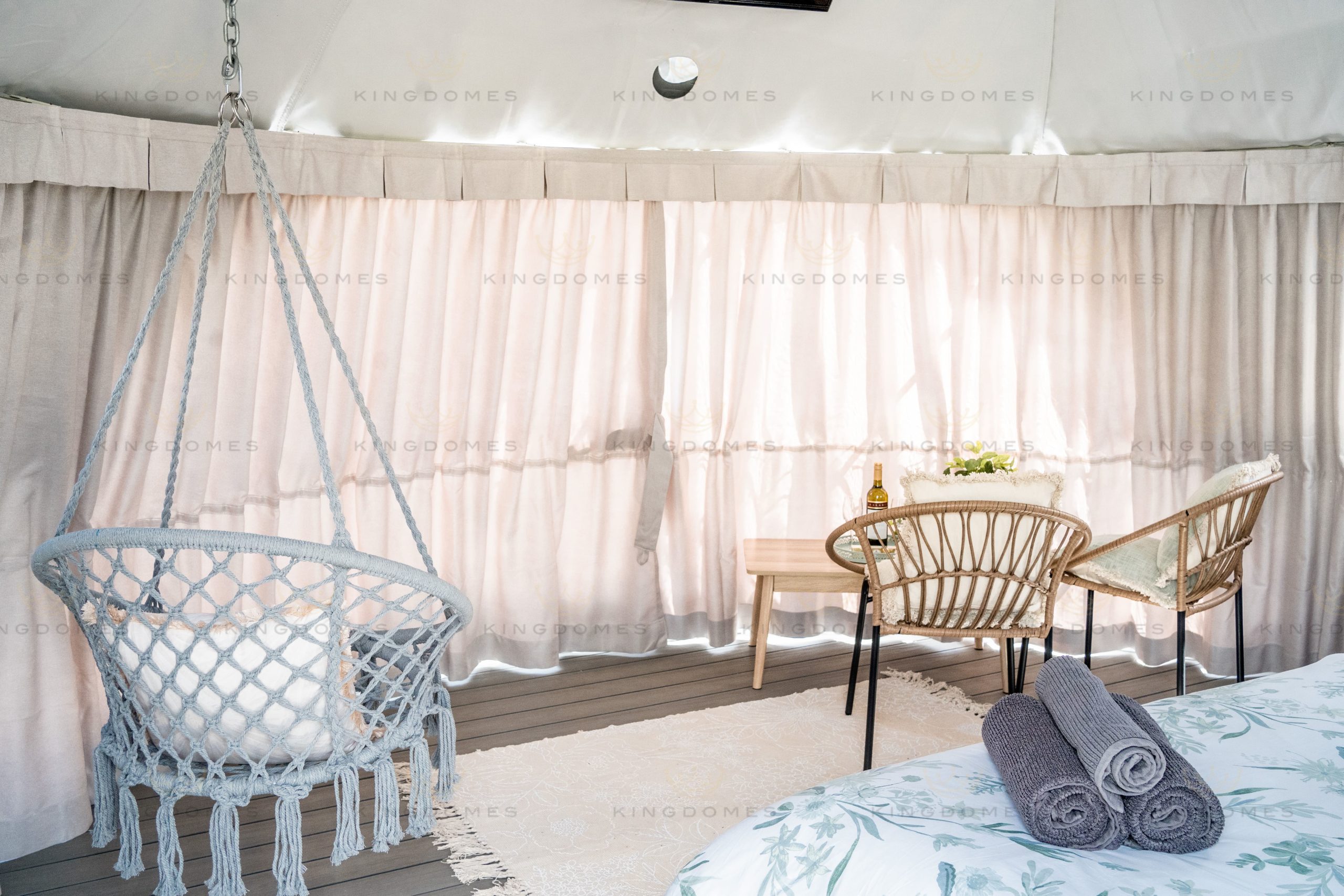

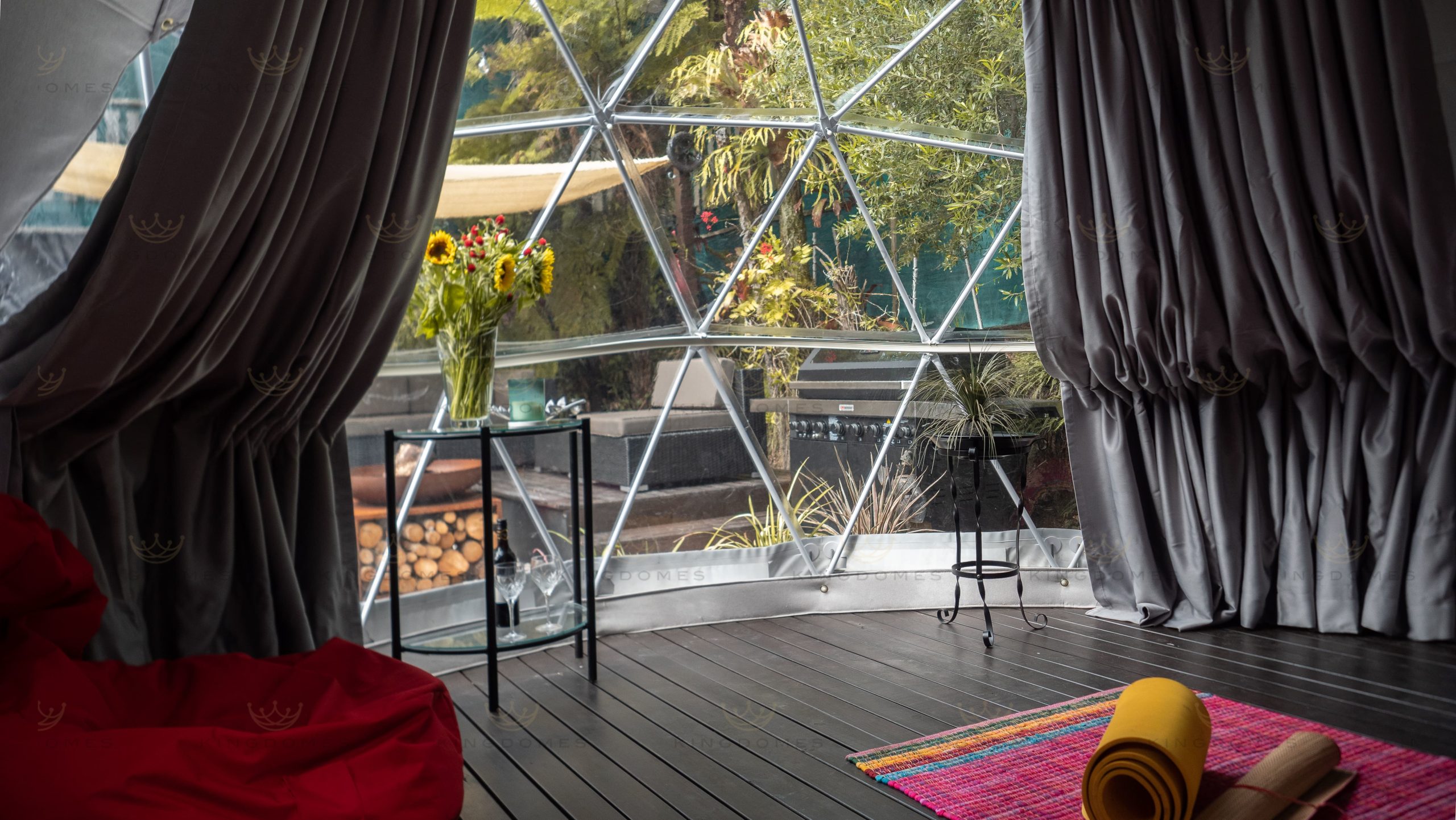

Curtains: Blackout properties, glides easily on rails fixed to the curvature of the dome.
Press Bars: Seals cover to foundation & around doorway, keeps insects & water out.

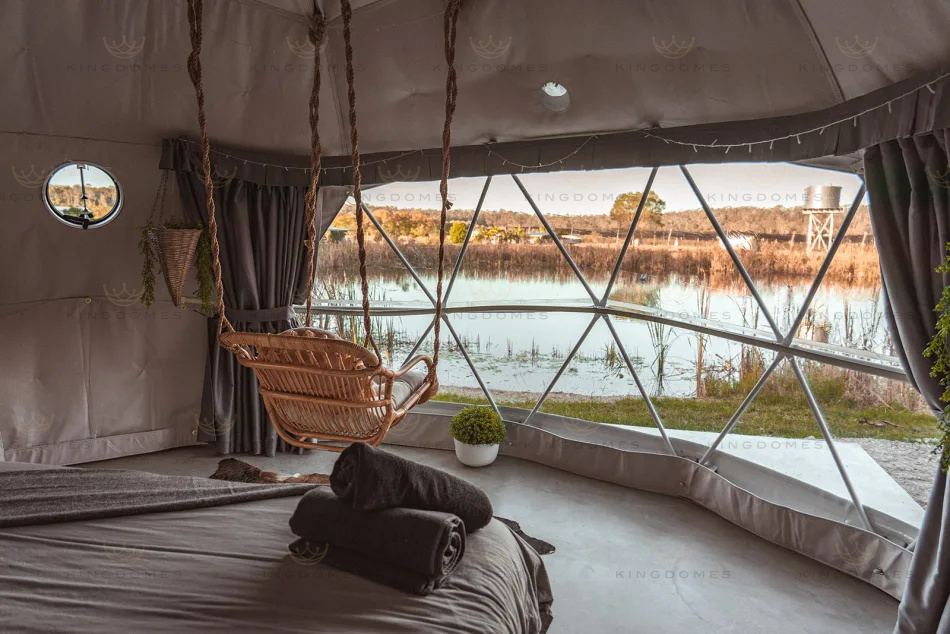

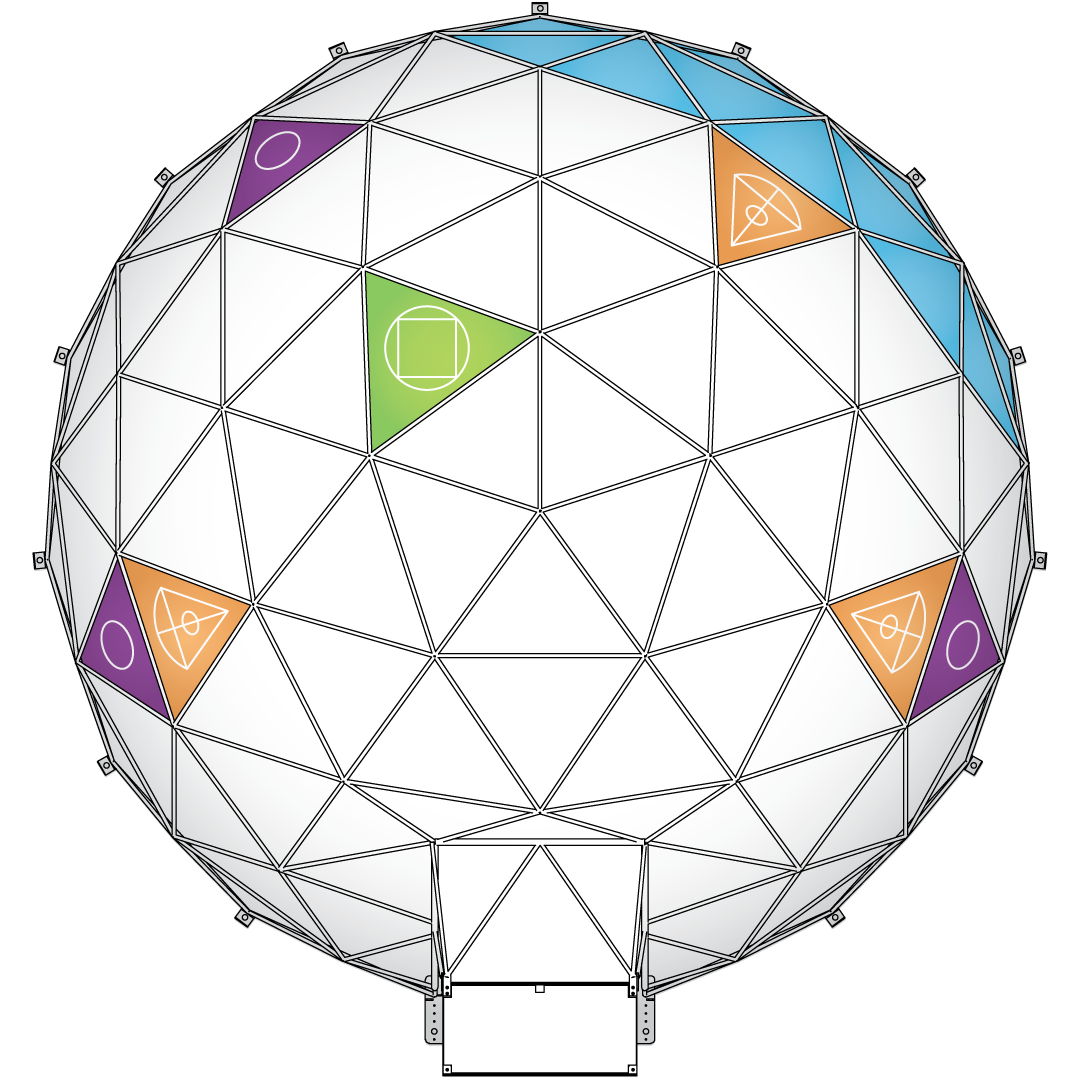

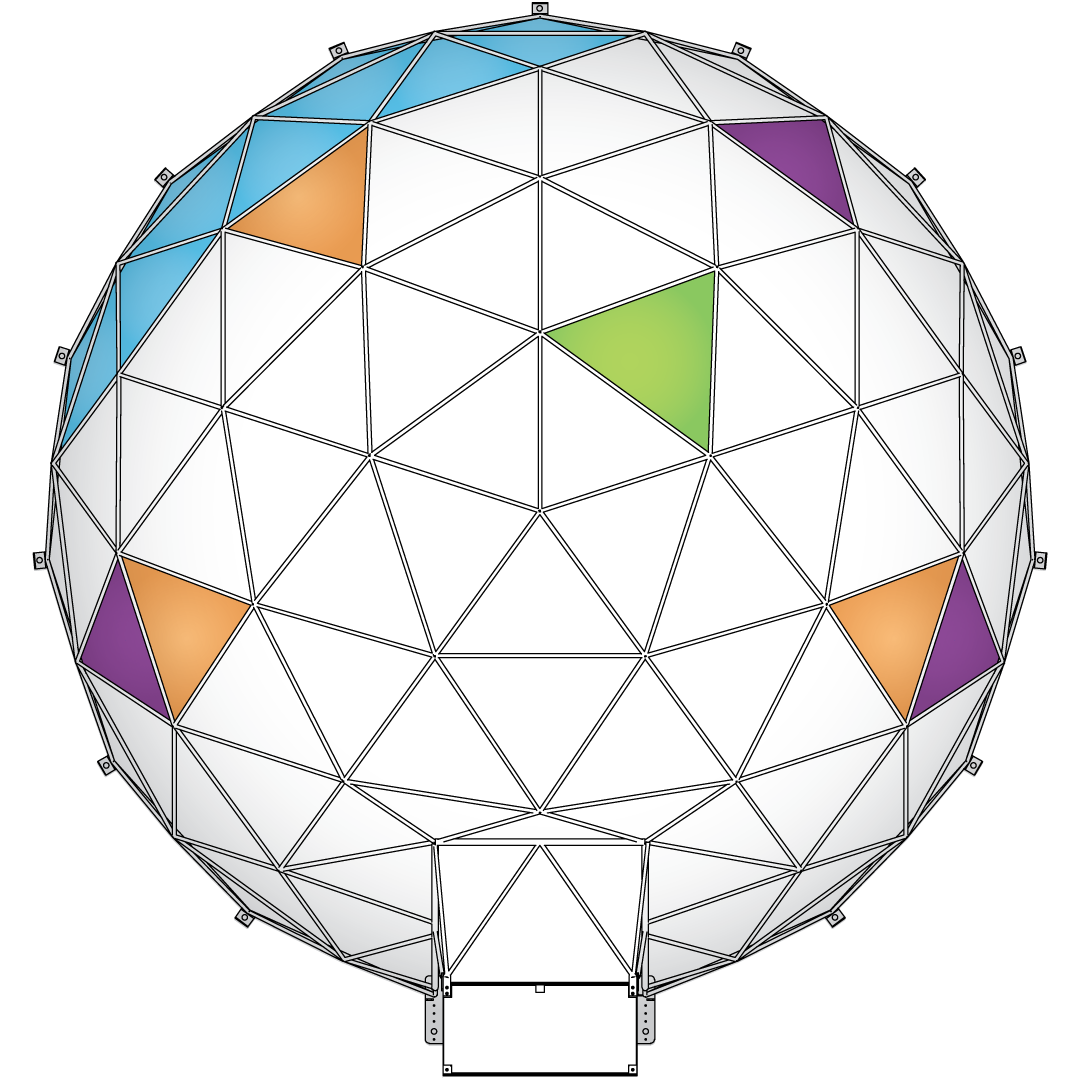

1 x Large Bay Window: Largest clear section of the PVC cover.

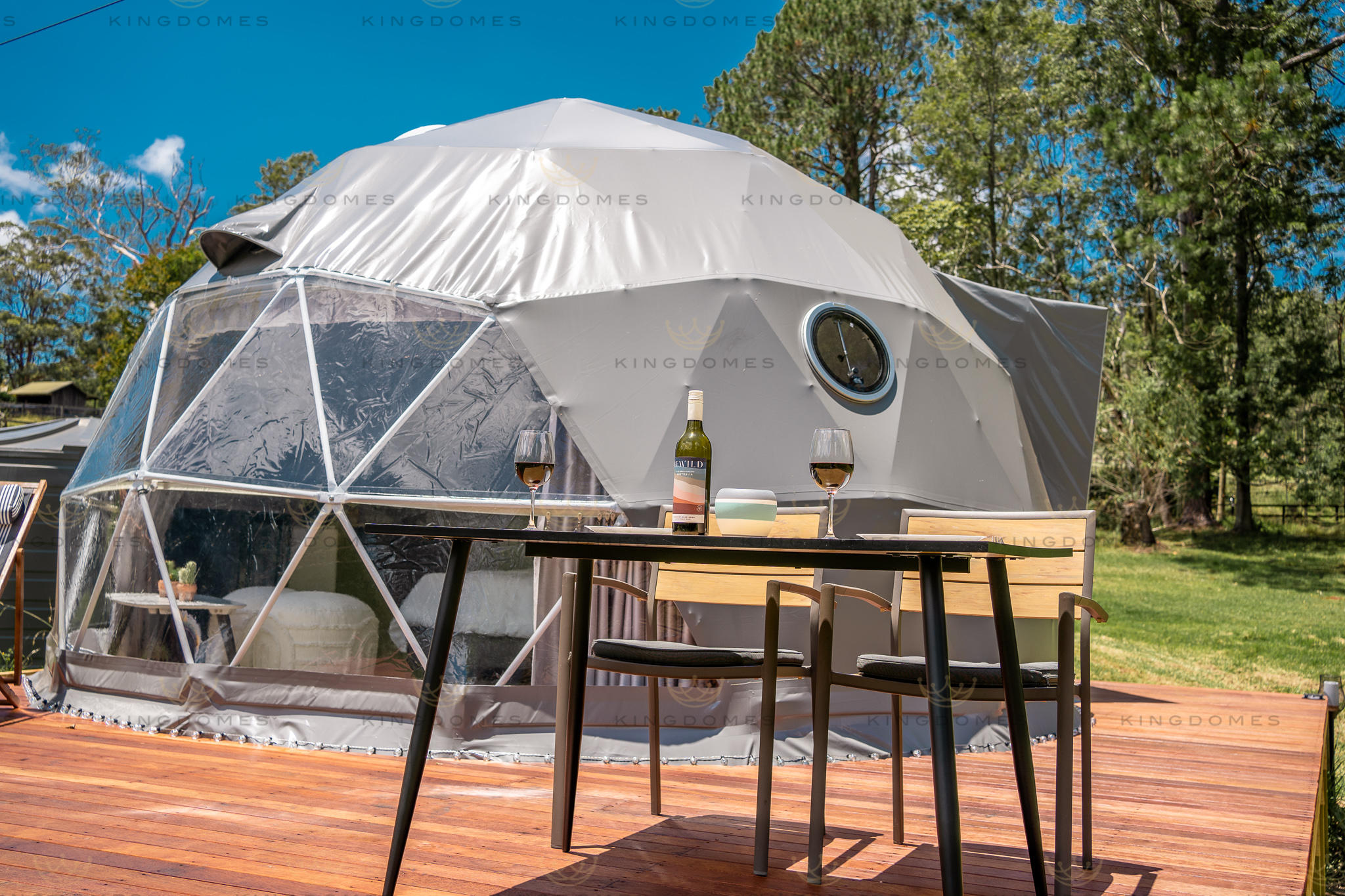

3 x Porthole Window: Tempered Glass with aluminium frame.
1 x Solar Fan: Extracts hot air from dome. On/Off switch, AC adaptor.
3 x Ventilation Ports: Additional ventilation for increased air circulation.
Tech Specs
GENERAL
Dome Diameter: Ø5m
Roof Height: 2.95m
Floor Area: 19.6m²
Dome Volume: 42.4 m³
Weight: ≈400kg
FRAME
Description: Hot-rolled seamless steel pipe
Surface finish: Powder coated
Steel Type: Q235
Yield Strength: 235Mpa
Elongation: 25%
COVER
Material: Dual layered PVC coated synthetic fibre cloth, tarpaulin.
Thickness: 0.76mm
Weight: Coloured Material- 850g/m2
Transparent Material- 950g/m2
Tear Strength: Longitude/Latitude – 462/348 N
Peeling Strength: Longitude/Latitude – 118/116 N/5cm
Applicable Temperature:-30 to 70ºC
Properties: 100% Waterproof, UV resistant, mould resistant, fire retardant, blackout properties.
DOOR
Material: Tempered Glass with Aluminium Frame
Size: Single Door Frame Dimensions
Height: 2100mm
Width: 900mm
Features: Frosted Glass
Lockable door with spare keys
Door opens outwards
Fly screen with magnetic strip
INSULATION
Material: Layered aluminium foil bubble insulation, PVDF coated, highly reflective and faced with a Knitted Polyester Fabric.
Thickness: 8mm
Properties: Designed to trap the heat between the PVC cover and the insulation which is a 50-70mm thick cavity. Used in conjunction with our solar fan to extract the air out of this cavity we can achieve an efficient Reflective Insulative System.
CURTAINS
Material: Knitted Polyester Fabric
Features: The curtain set includes 2 curtains (left & right) + pelmet
2 curtain rails (Top and mid-height) fixes the curtains to the curvature of the dome.
Style: Pinch Pleated Curtains with Pelmet
SOLAR FAN
Output: 18W 18V 1A
Solar Panel Size: 354 x 354 x 4.5
Package Size: 650 x 650 x 340mm
Brushless Motor Speed: 777RPM
Air Flow: 1378CMH
Air Duct Dia. Ø: 14” (368mm)
Features: Extracts hot air from the dome. AC/DC Power Adaptor with On/Off Switch
MESH WINDOW
Material: PVC – Built into the cover
Window Size: Varies depending on dome size
Features: Fly screen, Velcro Seal.
Rolls up and uses 2 straps to hold open.
PORTHOLE WINDOW
Material: Window Frame – Aluminium
Glass – Tempered Glass, 6mm thick, slightly tinted.
Window Size: Ø480mm
Features: This window can be locked in the open position at any angle.
ANCHOR PLATES
Material: Aluminium Alloy
Purpose: Used to anchor the dome to your foundation.
PRESS PLATES
Material: Aluminium
Features: 2 piece – Press Plate & Cover (cover clips on after fixing press plates)
Seals the PVC cover to the foundation & around the doorway. Prevents insects and water from entering the dome
TENSION BARS
Material: Aluminium alloy tubing.
Ø4m – Ø6m domes use: Circular Hollow Section (CHS)
Ø7m – Ø10m domes use: Rectangular Hollow Section (RHS)
Features: Uses threaded J-Hooks to fix and tension the cover to the Anchor Plates
HARDWARE
Exterior Hardware: All hardware exposed to the elements are made of aluminium or stainless steel.
Interior Hardware: All hardware sheltered by the cover is hot dipped galvanised steel, aluminium, or stainless steel.
